RitFit M1 & M1 Pro Smith Machine with Cable Crossover System(M1)

RitFit M1 & M1 Pro Smith Machine with Cable Crossover System, Multi-Function Squat Rack Power Cage for Home Gym, Power Rack and Packages

Q1: M1 1.0 VS M1 2.0 (M1 Pro)

A1: The upgraded M1 2.0 version of the Smith machine introduces several enhancements over the original M1 1.0. Notable improvements include the incorporation of aluminum pulleys, new aluminum alloy handles, and increased Olympic bar storage. These features work together to provide a smoother and more seamless user experience.

Q2: When rotating the Olympic bar, the barbell hooks will not turn along with it.

(The barbell hooks do not turn with the bar to latch when doing reps which makes it unusable)

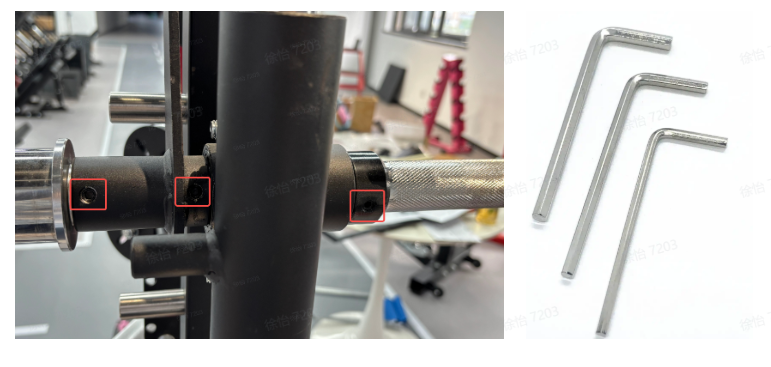

A2: Simply tighten the screws on both sides of the barbell clockwise as shown in the attached photo.(Tool: No. 4 L-shaped hexagonal wrench)

Q3: How should the issue of weight plates prone to slipping off be resolved?

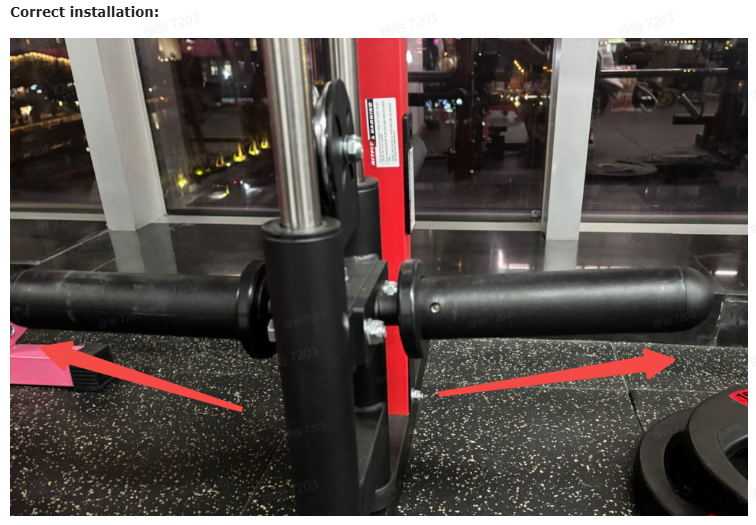

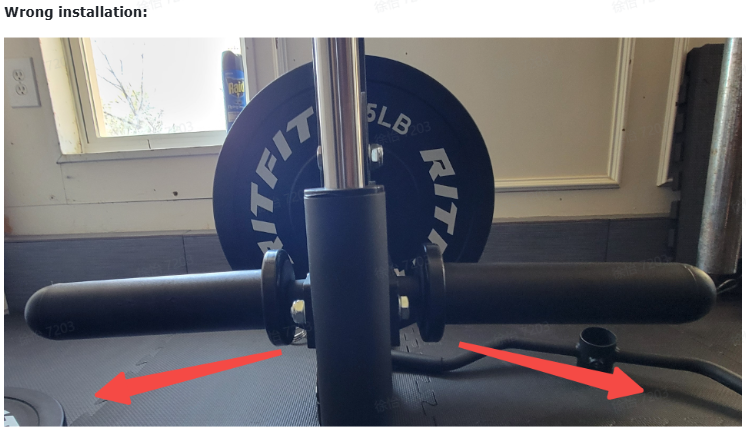

A3: This is likely due to incorrect installation. Please remove the bolt from the internal storage rod of the sleeve, adjust its direction so that the storage rod faces upward, and then reassemble it.

Q4: The Weight of Smith Barbell

A4: 33lbs

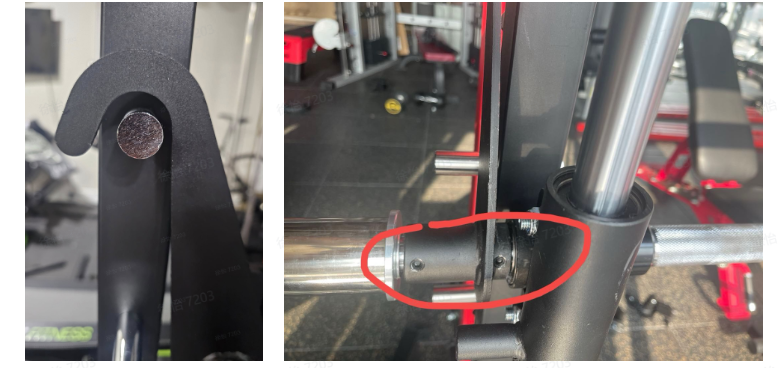

Q5: The barbell hook on one side of the Olympic bar of the Smith machine cannot hang on the safety pin.

A5: Please loosen the screws on the Olympic bar first, allow the bent hook to fall naturally, and then retighten the screws. If the issue persists, we need to send a new hook as a replacement.

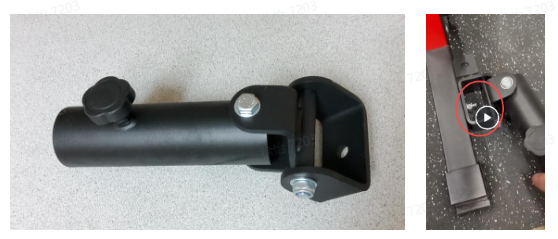

Q6: Received the landmine part that is not in the quick-release format (as shown in the image below). How should this be resolved?

A6: There are two types of landmine shipped by the factory: one is bolt-mounted, and the other is quick-release. The instruction manual and product images both indicate a quick-release format, but the customer received a bolt-mounted cannon tube, which leads them to believe there is an error with the parts. We need to explain this situation to the customer and inform them that they can install it using M10*75 Hex bolts. Reference images are as follows:



Q7:M1 PRO VS Buffalo

A7:The main differences are as follows:

1. The Buffalo's vertical posts are 2"x3" with a thickness of 2.0 mm, while the M1 Pro's vertical posts are 2"x2" with a thickness of 1.8 mm.
2. The grip angles for pull-ups are opposite; the Buffalo features better handle material for an improved grip experience.
3. The Buffalo has a larger internal space of 23.41 SQ.FT, while the M1 Pro's internal space is 22.46 SQ.FT.
4. The Buffalo comes with a removable decline bench module for leg training.
5. The Buffalo is priced higher.



Q8: What type of bearings does the M1 Smith machine use?

A8: Ball bearings.
